High Chrome Cast Iron Centrifugal Slurry Pump / Centrifugal Sludge Pump 5 -15000 M3/H

Anti-acid Centrifugal Slurry Pump Parts

Pump Description

Specification:

1. Outlet: 25mm - 750mm

2. Solid diameter: 1mm - 400mm

3. Motor power: 2.2kw - 2500kw

4. Head: 1m - 100m

5. Capacity: 5 -15000 m3/h

6. Density: 10% - 80%

7. Material: M/MR/MMR

8. Duty: Heavy

9. Wet Parts Material: High-chrome alloy; highly wear-resistant rubber

10. Application: Mining and mineral processing in non-ferrous and ferrous mines

Features:

1. Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.

2. Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.

3. Casing: Casing halves of cast or ductile iron provides high operating pressure capabilities.

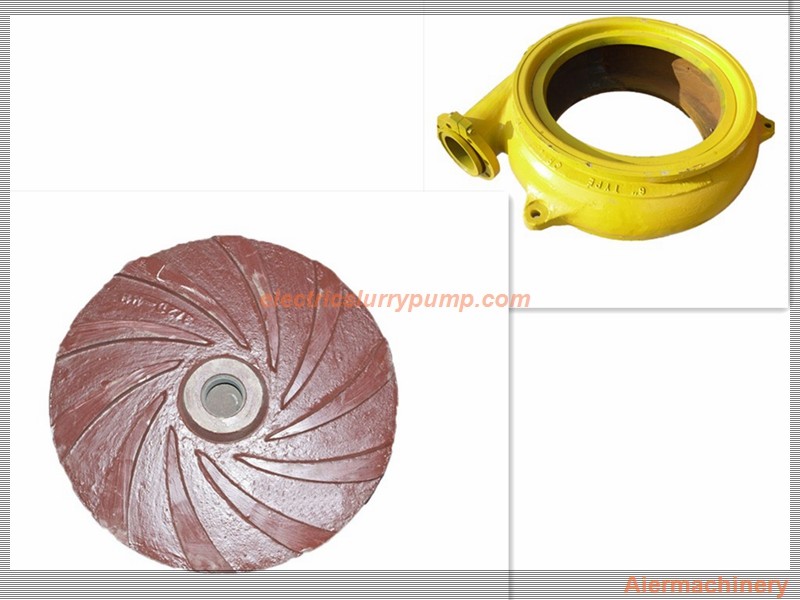

4. Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

5. Throat bush: Wear is reduced and maintenance simplified by the use of tapered.

Slurry pump parts--packing (pump seal)

The sealing method contains packing seal, centrifugal seal and mechanical seal. The packing is usually used for packing seal and centrifugal seal, and our product has different models .Clients are recommended to buy two boxes of packing at one time which are sufficient for one pump

Slurry pump spare pats-Volute liner

This is volute liner for slurry pump with excellent wear resistance, corrosion resistance and large passage area.
Good casing design makes maintenance easily and cost much lower. Advanced heat treat technology is used to treat high chrome alloy and results with a compact micro-structure and a high quality product.

Slurry pump parts-bearing assembly

Bearing assembly uses cylindrical structure, adjusting the space between impeller & front liner easily, being removed completely when being repaired.
