Dredger sand transfer Pump of wear resistant material high chrome cast iron A05 A49 for river sand suction
Heavy duty wear resistant Sand dredging pump
Pump introduction
a) Out let: 4-16inch
b) Capacity:36-3000m3/hr
c) Head:7-80 m
d) Speed:300-1400r/min
e) Rated Motor power:60-1200 KW
f) Allowable max partical size:82-241mm
Sand dredging pump pump is a single-stage single suction cantilever horizontal centrifugal pump with advantages of light weight, wear-resistant, high efficient performance, perfectly suited for the dredger. It throughout meets requirements of the dredger to dredging pumps. All the parts are interchangable dimensionally with international famous brand pumps
Features
a) Advanced hydraulic model, CAD 3D design, high efficiency and obvious energy-saving .
b) Large dredging depth, high density of dredging mud, good NPSH and strong suction lift ability.
c) Strong through-put. The pump can persistently discharge gravel, high plastic soil lump,etc.

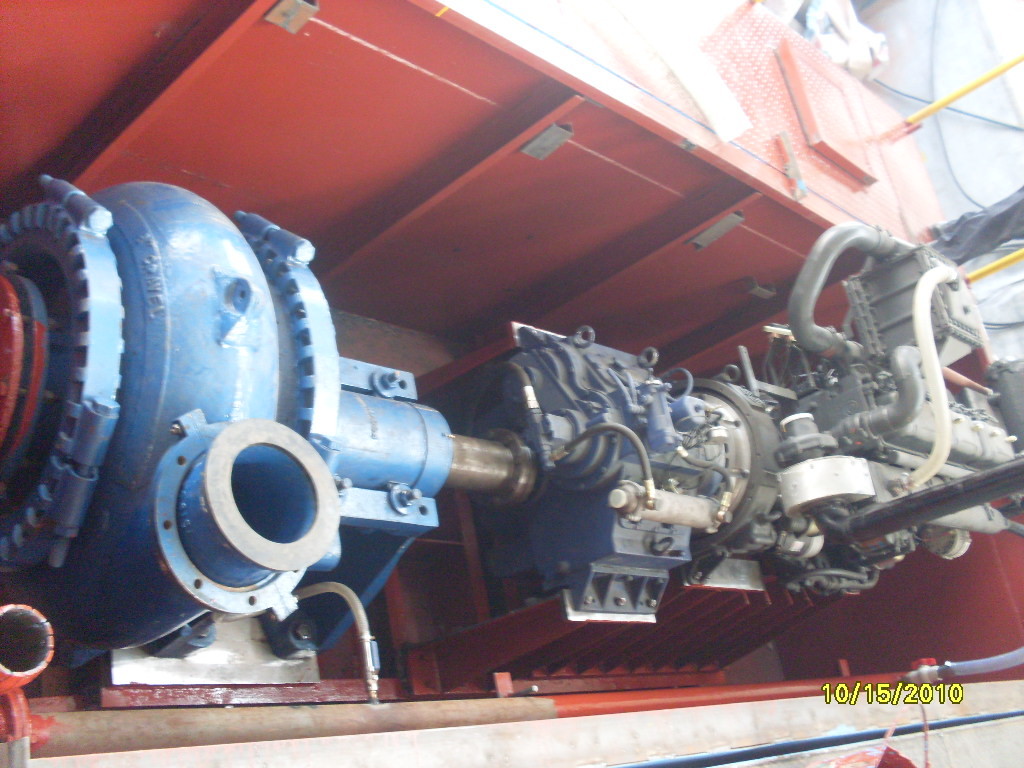

d) The pump can be directly matched with either motor or diesel engine.
e) Wide application. It can be used in various kinds of soil quality. Generally, the pump is matched with an impeller with 3 or 5 pieces of vane. At the same time, the impellers can be provided with various diameters and vane types to suit kinds of working conditions.
f) Little hydraulic loss, high efficiency and low oil-consumption.
g) Little volume, light weight .
h) Steady operating, little vibration, low noise.
i) Simple & reliable constrution, easily disassembly & assembly, convenient maintenance.
j) Reliable sealing without leakage
k) Long operating life of parts
Application
Sand Dreding Pumps are designed for handling the most difficult higher abrasive slurries continuously which contain big size solids, such as dredging, gravel suction in rivers or lakes, transfering slurries in mining, explosive sludge in metal smelting.

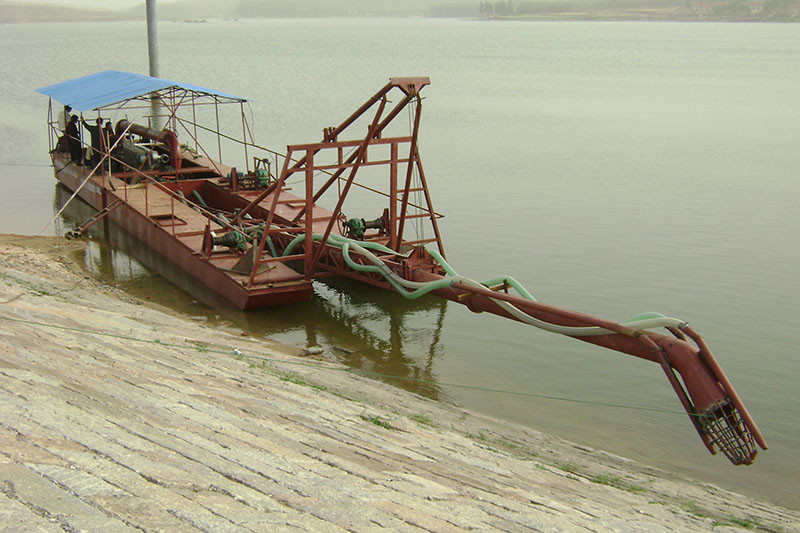

Sand dredging pumps are widely used for dredger and dam in the rivers, ports and wharf.
