Wear Resistant High Chrome Casting parts for sand dredging Slurry Pump
Product Introduction
Application:
Sand dredging pump is widely used in the sand excavation, dredging, mining, coal wery, power plant, metallurgy, petrochemical and other industrial departments.
Sand dredging pump is horizontal single-casing slurry sand pump with wide passage to transfer sand or slurry with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. Sand dredging pump has far better performance than cast iron pumps in dredging, sand mining, barge loading and mineral processing, etc. Featured with all the advantages of Sand dredging pumps have achieved extra high head for special working conditions.
1. Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings needed.

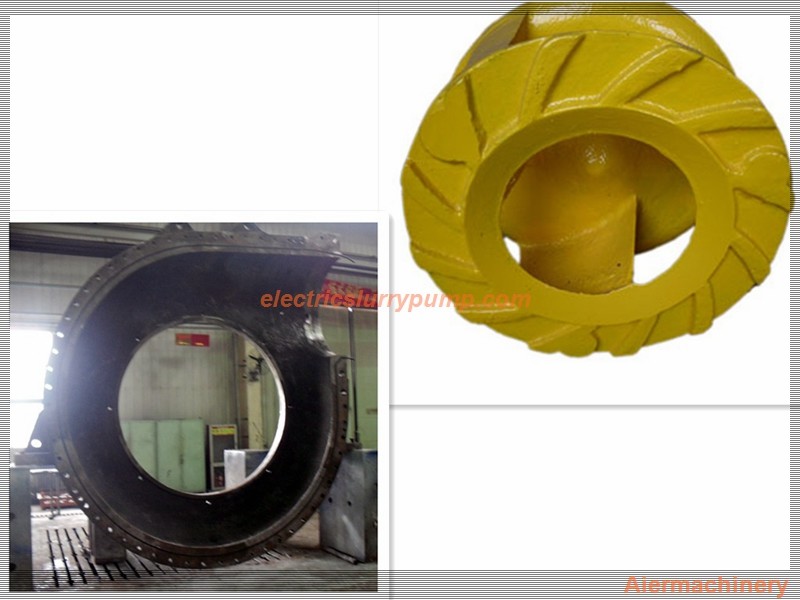

- Impeller
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Base
- Pump Volute;
- Cover Plate & Frame Plate
- Others
2. Materials
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, , etc.
Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.
3. Short delivery time
For some slurry pump parts, stocks are available. We have large producing capacity to shorten the delivery time.
4. OEM slurry pump part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
5. Frame & Bearing Assembly types
Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
6. Notice for inquiry
Please send us complete slurry pump part name, part code and material name.
We arrange express delivery for you for urgent needs, such as DHL, Fedex, TNT.
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 |
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 |
| AB33: 33%-37% chrome white iron | | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 |
| Rubber | | | | R08 |
| | | | R26 |
| | | | R33 |
| | | | |
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | | | G01 |
| Stuffing Box | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | | | G01 |
| Frame/Cover plate, bearing house & base | Metal | Grey iron | | | G01 |
| Ductile iron | | | D21 |
| Shaft | Metal | Carbon steel | | | E05 |
| Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt | Stainless steel | 4Cr13 | | | C21 |
| 304 SS | | | C22 |
| 316 SS | | | C23 |
| | | | | | |
Product Tags:
|
|

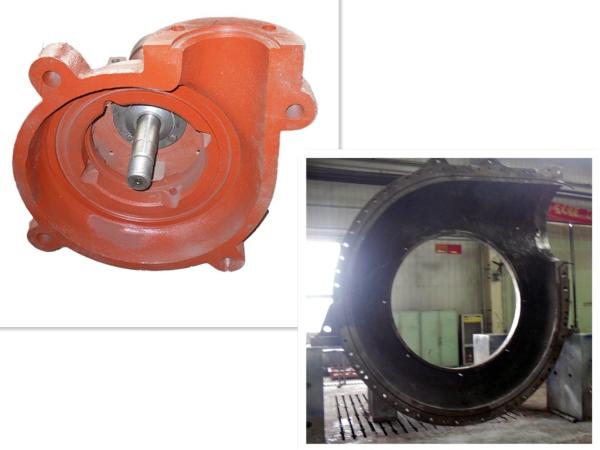

High Speed Centrifugal River Sand Pumping Machine Wear Resistant Material Images
|
