Gold Mining Horizontal Electric slurry pump with heavy duty interchangable wet parts of Cr27, Cr26, A05, A49
Introduction
High Head l mining electric slurry pump is horizontal,cantilevered,centrifugal,single stage slurry pump, with the advantages of high efficiency, large capacity, non-clogging, good performance of NPSH and anti-wearing and anticorrosion materials, widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy, mine, coal, constructional material and chemical industry departments, especially for removing and sludge in electric power station.
Typical Application
High Head l mining electric slurry pump, double casing structure, high efficiency, wear resistant, stable performance, easy assembly, lining and impeller can be made of wear metal, and the discharge outlet can be adjusted with rotation interval of 45 degree, the impeller can be cut for site condition, the pumps can be operated in series and driven with belt..
Mining
Metallurgy
Chemical Process
Heavy Minerals
Paper and Pulp
Mill Discharge
Sugar Beet
Slag Granulation
Bottom Boiler and Fly
Cyclone Feed
Power Plants
other industry
Material
| Parts | Material | Specification |
| Volute Liner, Impeller,Throatbush, FPL insert | Hard Metal | A05:23~30% A07:14~18% A12:30% A49:27~29%A33:33~37% Chrome White Iron |
| Rubber | R26 R08 R55 R38 R33 Natural Rubber; S01 EPDM Rubber; S21;Butyl;S31;Hypalon; S44; Neoprene |
| Expeller&Expeller Ring | Metal | A05 23~30% High Chrome Iron G01: Grey Iron |
| Rubber | R26 R08 R55 R38 R33 Natural Rubber |
| Stuffing Box | Metal | A05 23~30% High Chrome Iron G01: Grey Iron |
| Frame Plate,Cover Plate,Base Bearing housing | Metal | G01 Grey Iron D21 Ductile Iron |
| Shaft | Carbon Steel | Type 1045(ASTM) |
| Shaft Sleeve,Lantern Rings,Restrictor ,Neck Ring,Gland Bolts | Stainless Steel | 3Cr13,304SS,316SS |
| Joint Ring&Seals | Rubber | R26 R08 R55 R38 R33 Natural Rubber; S01 EPDM Rubber; S21;Butyl;S31;Hypalon; S44; Neoprene |
Product Tags:
|
|

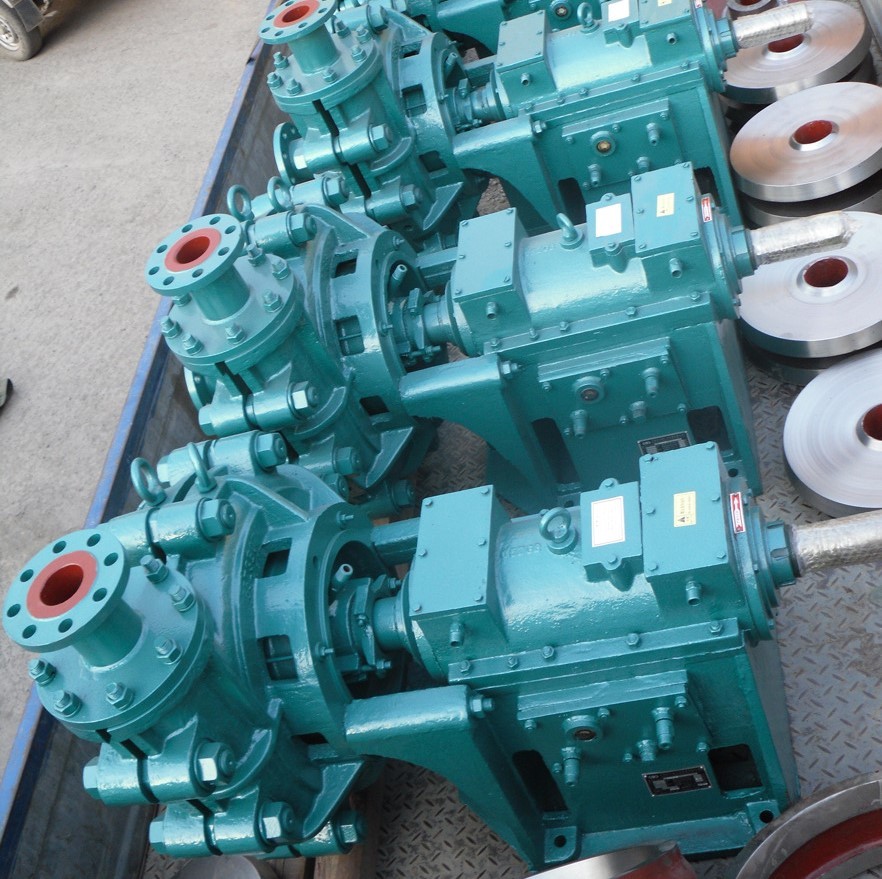

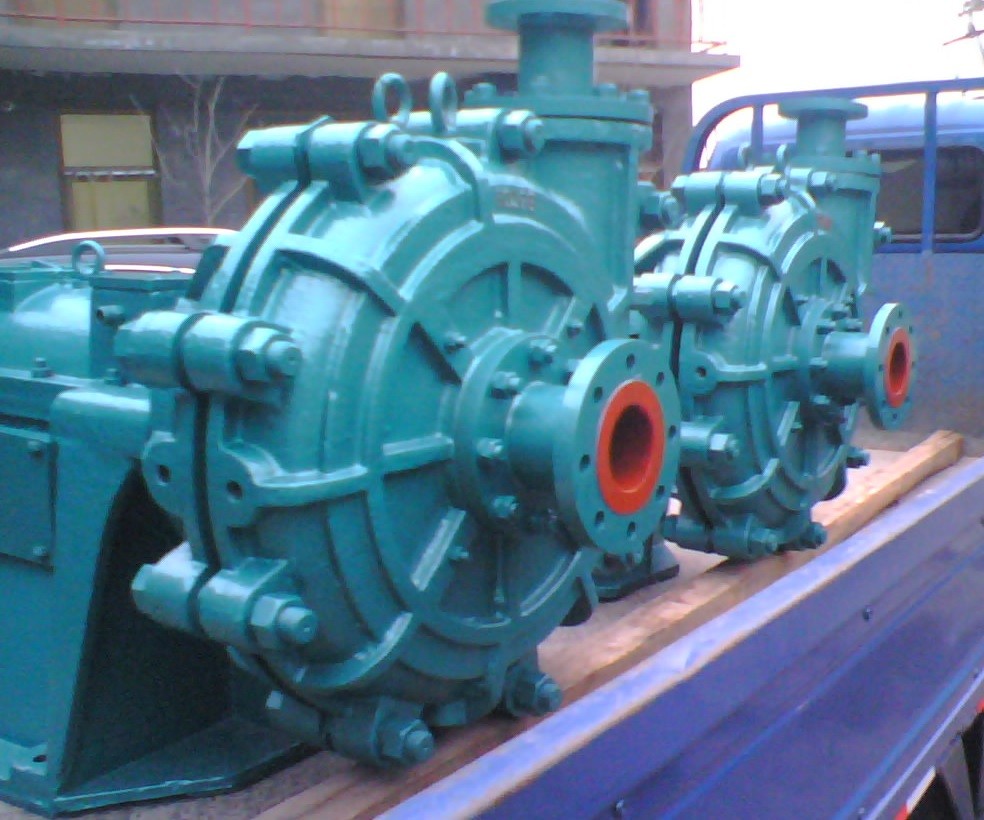

Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts Images
|
