abrasive-resistant slurry transfering mining pump with interchangable wet parts of Cr27, Cr26, A05, A49
Features
The frame plate for WA series pumps has interchangeable hard metal or pressure moulded elastomer liners. The impellers are made of hard metal or pressure moulded elastomer liners.

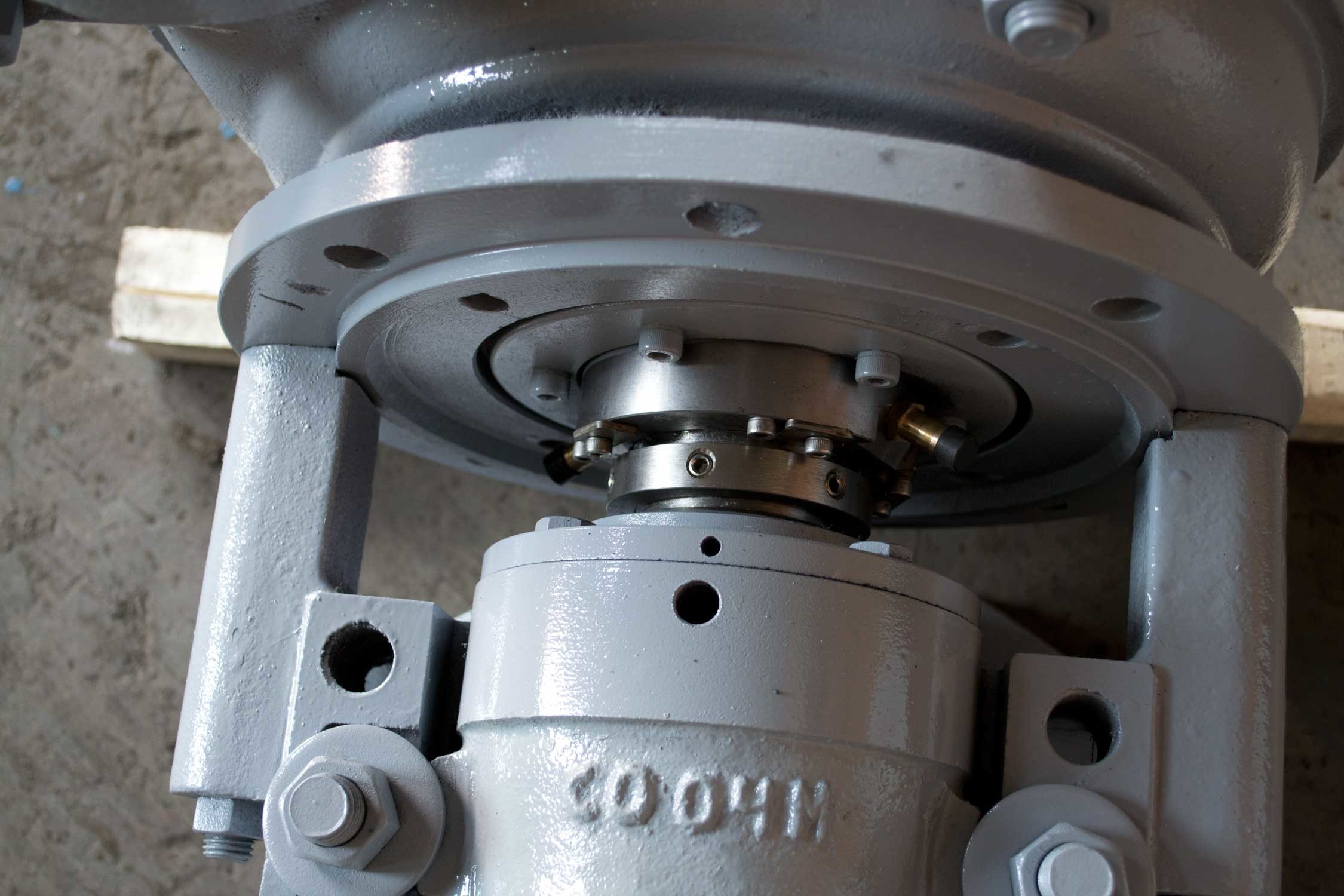

The shaft seals for WA series can be packing seal, centrifugal seal or mechanical seal.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. There are many drive modes for option, such as V-belt, flexible coupling, gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc. Among them, the flexible shaft coupling drive and V-belt feature of low cost and easy installation.
Pump Introduction

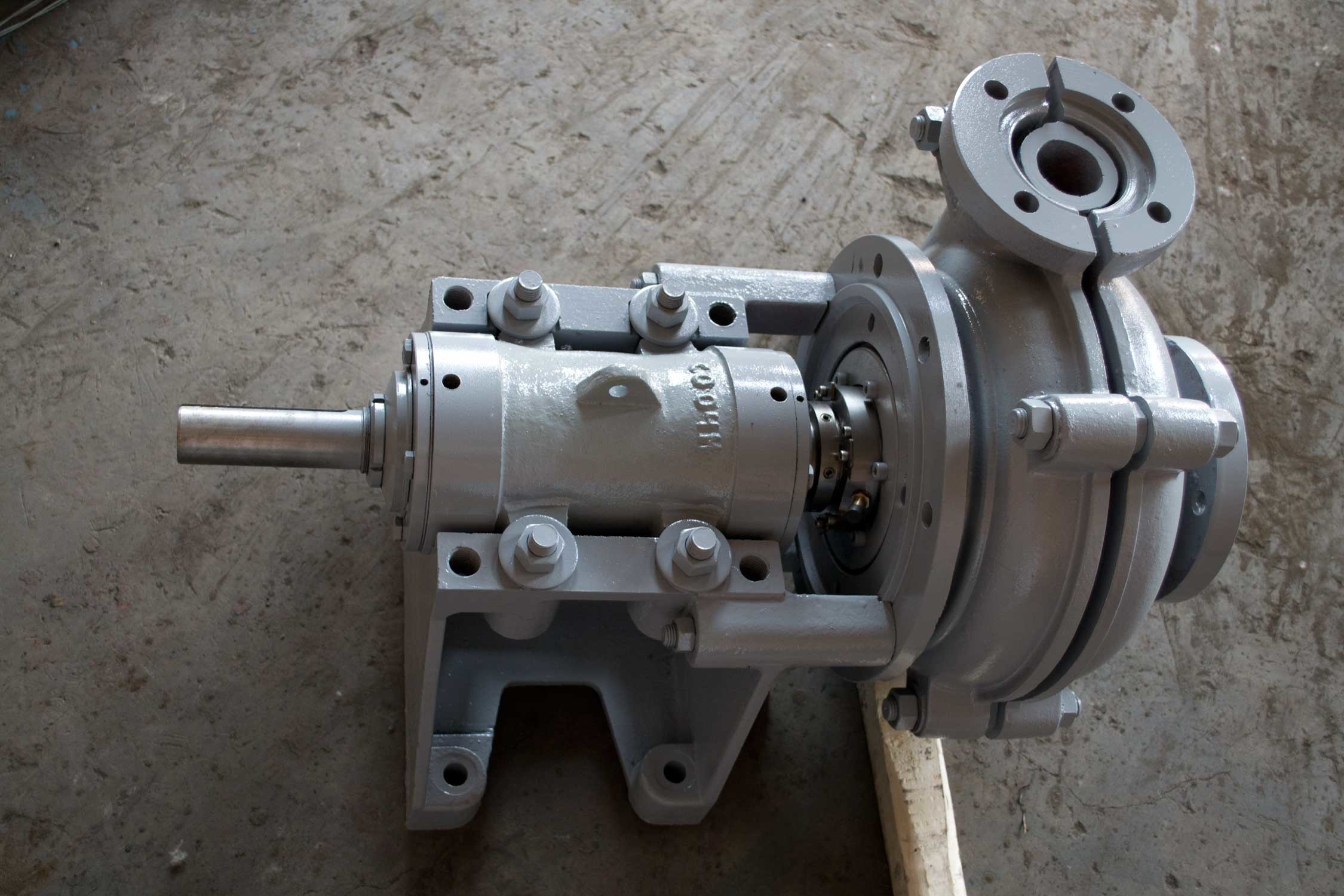

WA series of Mining Sand Mud Slurry Pump
Structure feature :cantilevered, horizontal,
Material of wet parts: natural rubber or hard metal (high chrome cast iron)
Application range: handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industry department.
Slurry Pump&md;Application
slurry pump is suitable for processing the high abrasion slurry or the material containing solid particles.
Metal smelting plant: convey slurry
Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants
Coal preparation plant: classifying, screening and conveying heavy medium, conveying coal pulp
Ceramics and glass factory: porcelain clay and sandstone transportation, feeding hydrocyclone and effluent disposal etc.
Steel works: conveying slurry, rust and corrosive liquid etc.
Irrigation systems and dredging: silt removal in dams and river bed, sand classifying
Note: please specify if applied where oil and chemicals are contained
