Long Service Life Sand Slurry Pump , Centrifugal Slurry Pump Wear Resistant

Mining sludge handling slurry pump with interchangable wear-resistant wet parts of hard metal material

Introduction of MiningSlurry Pump :

1. Abrasion and corrosion resisting
2. Material: hard alloy metal (Cr27, Cr28, CD4MCu) or rubber liner optional,
3. Shaft seal: packing seal, expeller seal, and mechanical seal.
4. Power driver: electrical motor or diesel engine.

Advantages:
1. Discharge branch can be positioned at intervals of 45 degree.
2. Good replaceability of components with original pump.
3. Wear-resistant metal and long service life time.
4. With greater axial and radial load rating capacity,
5. Discharge direction can be installed at intervals of 45 degrees as request and oriented to any eight positions to suit applications.
6. Suit different working condition
7. Wide application, high efficiency and easy to maintain.
8. Wide options for impeller.
9. Bearing assembly use grease lubrication.

Structure:

The slurry pumps have pump bodies that consist of replaceable wear-resistant metal liners or wear-resistant rubber liners, and impellers can also apply wear-resistant metal material or wear-resistant rubber material. The HH type slurry pumps only apply wear-resistant metal material as their pump bodies and impellers.

Slurry pump application

Chemical Process

Heavy Minerals

Paper and Pulp

Mill Discharge

Sugar Beet

Slag Granulation

Bottom Boiler and Fly

Cyclone Feed

Power Utilities

Diesel Slurry Pump

Abrasive Slurry Pump

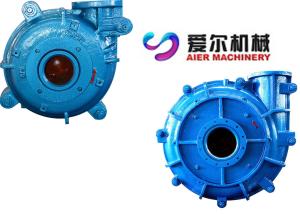

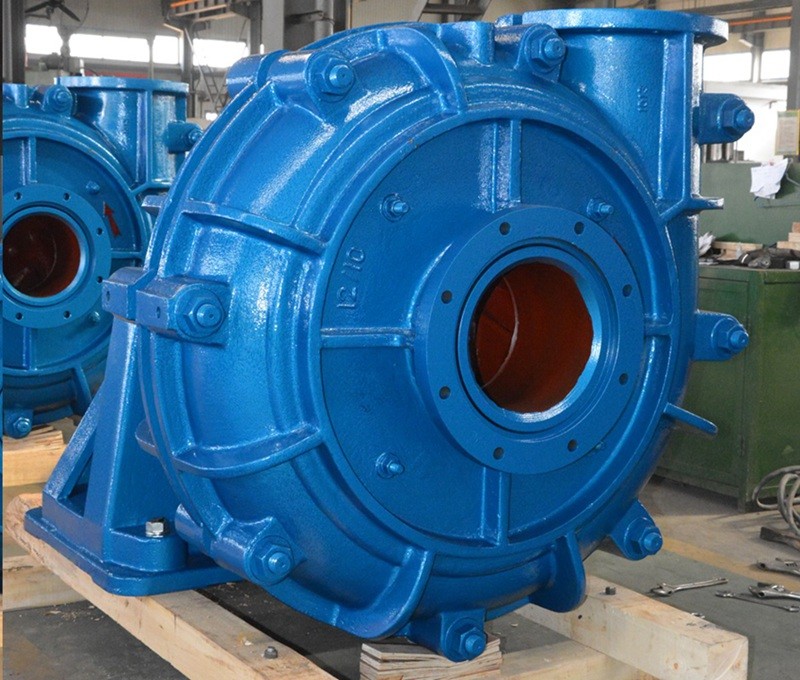

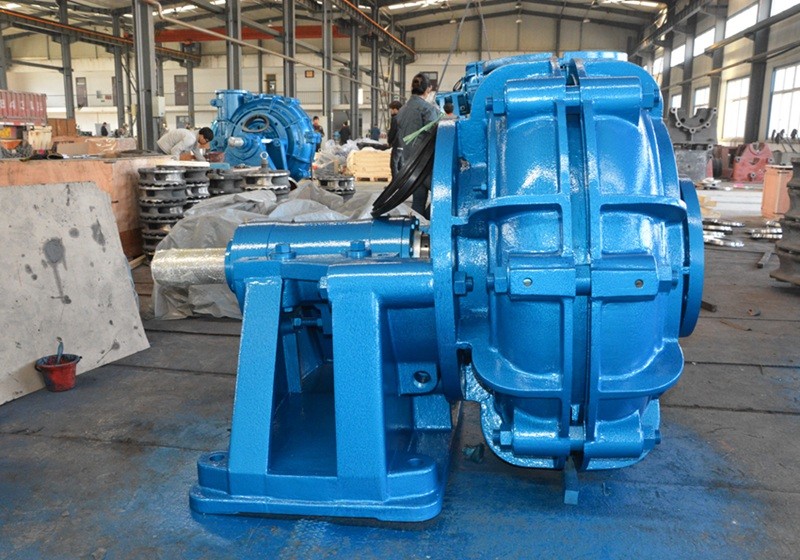

Long Service Life Sand Slurry Pump , Centrifugal Slurry Pump Wear Resistant Images
